HY-800 single group continuous cutting machine product introduction:
The 800 type single-group continuous cutting machine is our company's latest product suitable for cutting foundation line/mosaic/ancient building tiles and other types of plates. It has high cutting efficiency and strong stability. It truly realizes multiple functions in one machine. The diameter range of cutting blades that can be installed: 180 ~300mm, cutting spindle adopts water-cooled cooling, which makes the spindle more wear-resistant. The machine runs fully automatically, which greatly saves labor. It is one of the most popular products for ceramic and stone deep processing enterprises. It is mainly suitable for mass cutting and production of foundation lines/mosaics/ancient tiles/green bricks, etc.
HY-800 type single group continuous cutting machine product advantages:
1. Up to 12 pieces can be cut at the same time.
2. The headstock bearing seat adopts a water-cooled device, so it does not generate heat or high temperature after continuous long-term use, and prolongs the service life of the bearing.
3. "V"-shaped belt guide to ensure precise belt conveying.
4. The dovetail trough rises and falls, and the double-supported gantry structure. It is more stable when cutting and has less vibration.
HY-800 type single group continuous cutting machine equipment parameters:
Maximum cutting size: 800mm
Cutting thickness: 6-30mm
Main motor power: 15KW
Appearance size: 2300mm*1900mm*1600mm
Cutting disc diameter: 180-260mm
Weight: 1800kg

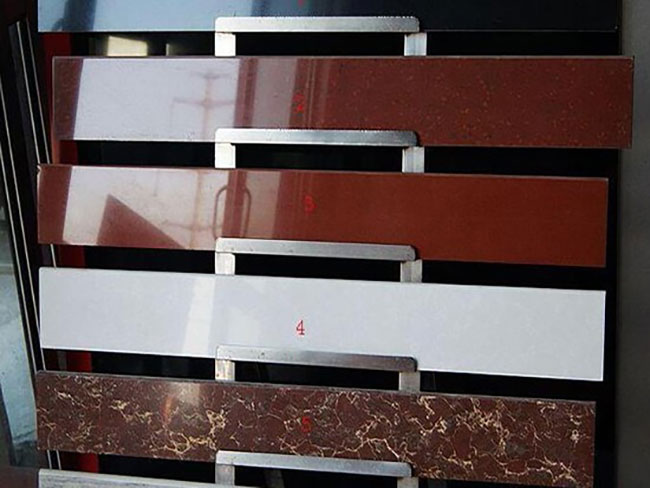

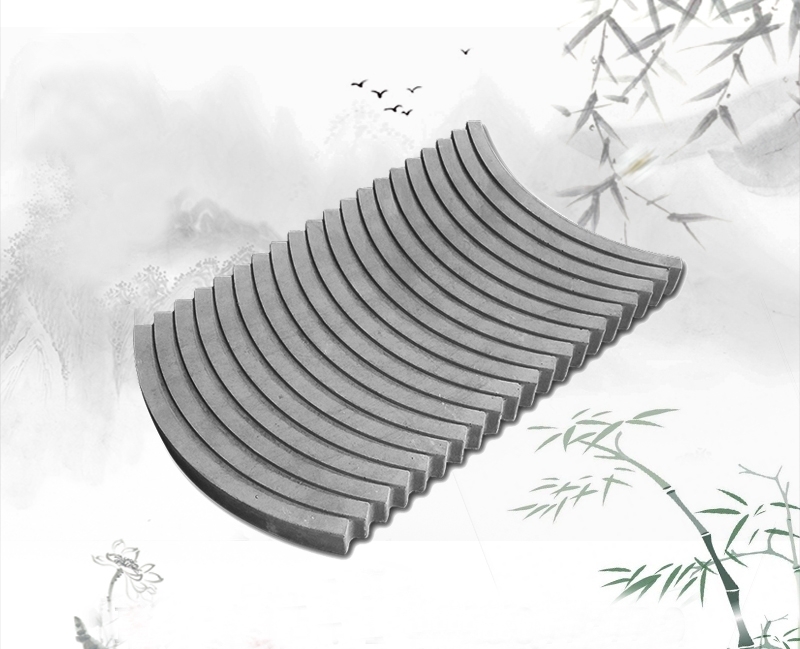

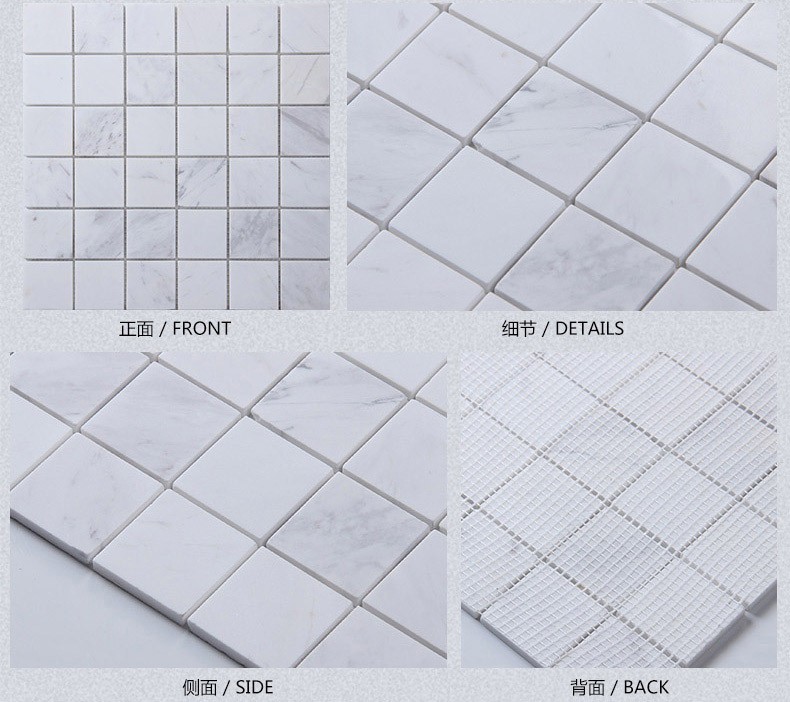

Product processing effect:
Foshan Nanhai Hongyun Ceramic Machinery Co., Ltd. was established in 2008. Since its establishment, it has been focusing on the production of ceramic tile deep processing equipment, waterjets, multi-function arc polishing machines, arc line polishing machines, CNC tile cutting machines, and ceramic tile hand cutting machines. The company has professional R&D team and first-class production line, and the management is increasingly standardized and improved.And since its establishment, it has always insisted on using high-quality raw materials, advanced production technology and equipment to produce batches of high-quality, durable, safe and reliable products. It is deeply trusted and loved by many customers at home and abroad.
